Herring Bone Holes

Home > Perforated Patterns > Herring Bone Holes

HERRING BONE
Holes per Sq. Inch =
1290.3
A x F
% Open Area =
W x L
 X 100
A x F

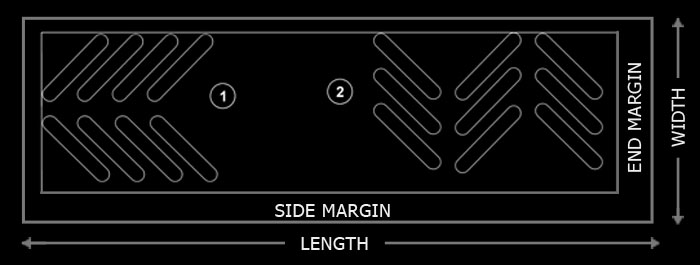

PERFORATION PATTERN

1) Herring Bone Normal 45° Normal to Width
2) Herring Bone Normal 45° Normal to Length
